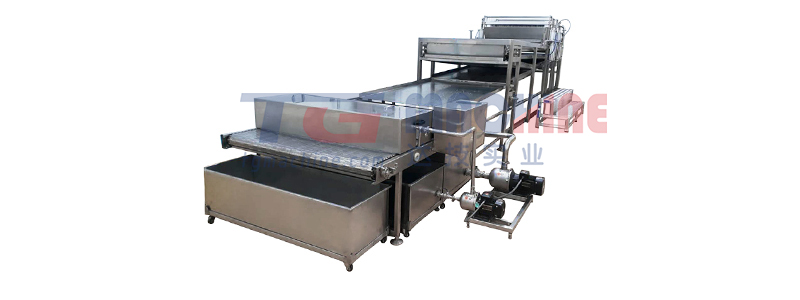

Due to its deliciousness and fun to enjoy, popping boba is rapidly gaining popularity all over the world. The production of popping boba in the local area saves costs and time so has become the choice of many food manufacturers. Here at TG Machine, you can find the right equipment to produce popping boba. Our SMP200 popping boba production line is a fully automatic machine that features simple operation, and integrates all the processes of popping boba making. The poping boba produced by this machine has round shape and bright color, suitable for cold and hot drinks such as bubble tea, ice cream, yogurt, etc., or for cake decoration and fruit salad.
According to the production process, the popping boba is produced by three kinds of liquids, i.e. the fruit juice inside the popping boba, the sodium alginate-based coagulation liquid at the surface of popping boba, and the protective liquid for preservation of the popping boba.

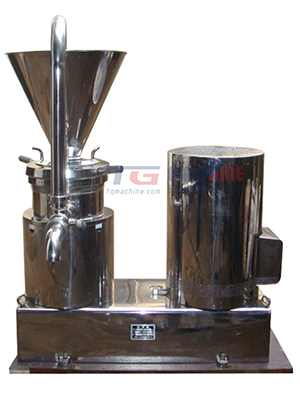

Colloid mill is used to finely grind various semi-fluid materials, so that the materials can be broken and dissolved quickly and evenly. In the popping boba production line, it helps sodium alginate dissolving in water and increases its dissolution rate. Different output and fineness can be achieved by adjusting the gap between the fixed and rotating teeth of the colloid mill.
| Model | JM-L50 |
| Emulsification fineness (um) | 2~50 |
| Output (t/h) | 0.2~0.5 |
| Grinding disc diameter (mm) | Ø50 |
| Feed port (mm) | Ø47 |
| Discharge port (mm) | Ø20 |
| Speed (r/min) | 2900 |
| Motor power (kW) | 1.5 |
| Machine size (LxWxH) | 460×340×800 |
| Weight(kg) | 68 |

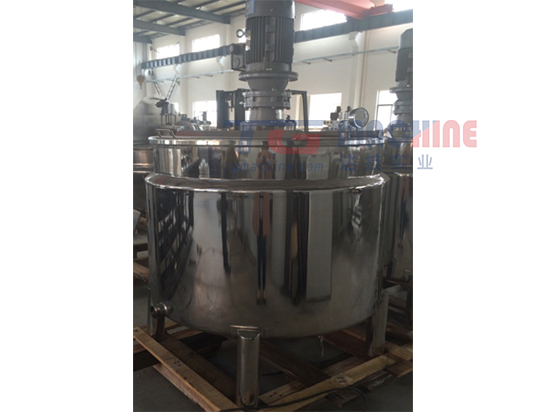

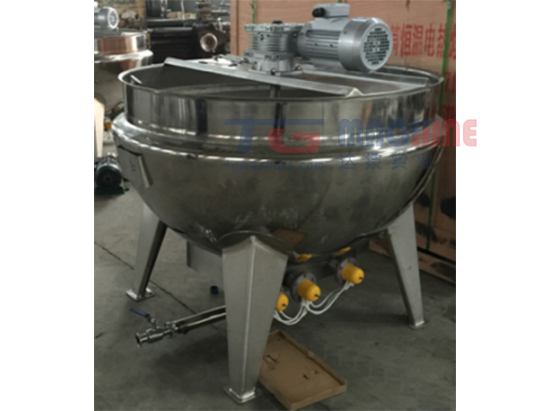

The cooking system is mainly used to cook fruit juice and surface coagulation liquid. It uses scraping-edge stirrer to avoid dead ends. Both steam heating and electric heating are available.
The cooling tank is mainly used to lower the temperature and to temporarily storage the liquid raw materials after cooking.

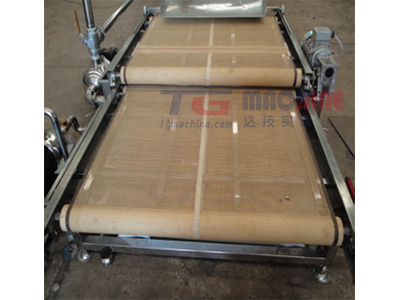

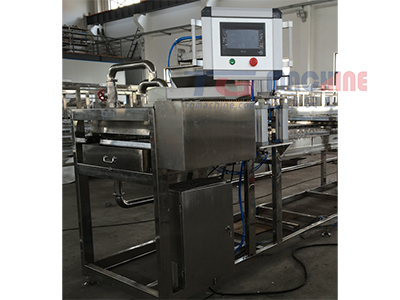

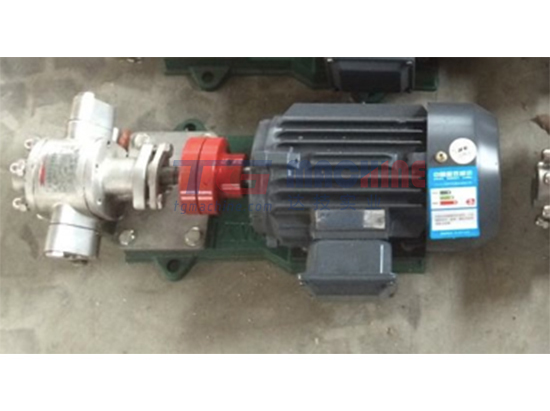

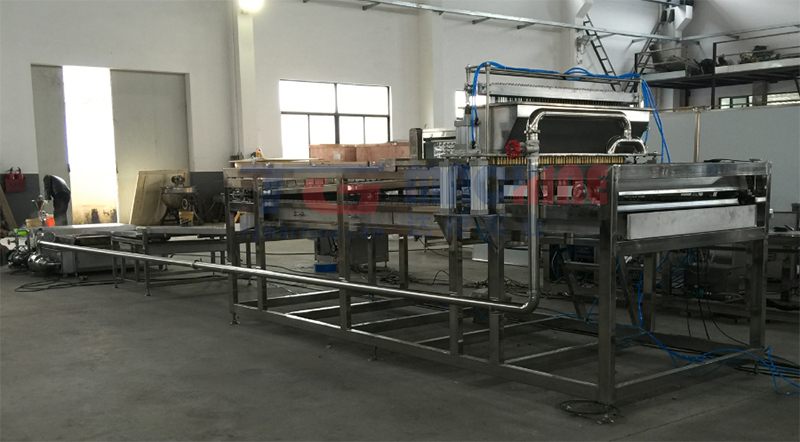

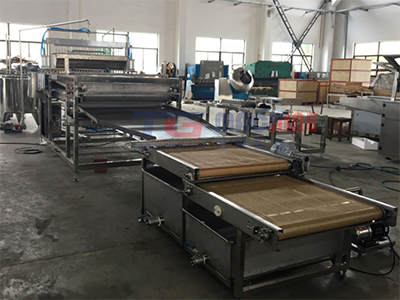

Mainly used for conveying various liquid raw materials. The pump body is made of 304 stainless steel, which can meet the requirements of food production. The forming system is composed of depositing system, material tray conveying system, sodium alginate circulation system, popping boba filtration system and cleaning system, etc.
| Total power | 8kw |
| Capacity | 200~300kg/h |
| Size | 5400x2200x2250mm |
| Weight | 2000kg |
| Working environment | >25℃ |
| Depositing speed | 15~25times/min |
| Popping boba size | Dia8-15mm(popping boba with a minimum diameter of 5mm and a maximum diameter of 25mm can be customized) |
| Name | Quantity |
| Controller | 1set |
| Depositor | 1set |
| Liquid(sodium alginate liquid) cycle system | 1set |
| Product filter system | 1set |
| Washing system | 1set |
| Buffer system | 1set |
| Filtration system | 1set |
| Machine name | Brand |
| Contactor | Schneider |
| Thermal relay | Schneider |
| Small relay | Omron |
| Button | Omron |
| Servo motor | TECO |
| PLC | Siemens |
| Touch screen | Siemens |
| Optoelectronic switch | Omron |
| Approach switch | Omron |
| Cylinder | SMC |
| Approach switch | Omron |
| Motor （Not including the motors which are connected with the water and sodium alginate cycle pumps） | Siemens |
